Ground Support Equipment (GSE) charging
solutions
Airport Ground Support Equipment (GSE) operates in critical environments where machine reliability directly impacts aircraft turnaround times. Electric tow tractors, pushback tugs, baggage tractors, and other airside vehicles increasingly rely on dedicated GSE battery chargers and GSE charging station infrastructures designed for continuous operation.

Electric GSE fleets also include equipment such as belt loaders, cargo handlers, and electric Ground Power Units (eGPU). These vehicles typically connect to specialized tug chargers, electric tug chargers, or centralized airport charging infrastructures installed in airside service areas or maintenance hubs.

In these installations, the charger is more than just a power source; it is a vital part of the infrastructure supporting electric airport equipment, guaranteeing stable energy delivery, protecting battery health, and ensuring maximum fleet availability.

Requisites for airport GSE charging operations

Airport GSE fleets operate with intensive duty cycles and tight operational schedules. Vehicles like electric tugs and pushback tractors often work continuously during peak flight periods, leaving limited windows for battery recharging.

The charging infrastructure must therefore support:

  • Multi-shift fleet operations.
  • Short charging windows (opportunity and fast charging).
  • Diverse battery chemistries (Lead-Acid and Lithium).
  • High output current capacity.
  • Coordinated operation of multiple GSE chargers on the same electrical grid.

Modern airport fleets are rapidly adopting lithium batteries for towing vehicles and airside equipment. In these cases, specialized lithium GSE battery chargers capable of communicating with the vehicle’s BMS are required.

These vehicles commonly use 48V, 80V, and 96V battery platforms, with charging power typically ranging from 10 kW to 60 kW.

Operational constraints

Charging systems destined for airport operations must function reliably under several constraints:

  • Continuous vehicle rotation during flight operations.
  • Limited charging time between aircraft ground handling tasks.
  • Outdoor installations in apron areas exposed to environmental conditions.
  • Simultaneous connection of multiple vehicles.
  • High requirements for operational uptime.

Since many units are located airside, they are often deployed as outdoor GSE chargers and must withstand variations in temperature, humidity, and dust. For this reason, weatherproof designs for airport installations are standard.

Electrical performance and stability

The charging infrastructure for electric airport equipment must guarantee stable electrical performance even under variable loads.

Key parameters include:

  • Stable DC voltage and current.
  • Controlled charging curves to protect battery longevity.
  • High power factor and efficient AC-DC conversion.
  • Reduced output ripple to prevent battery overheating.

GEBAT charging systems used in these contexts typically operate at near unity factor and filtered DC current to minimize ripple, ensuring stability even when multiple chargers function simultaneously.

BMS and CANBUS integration

Many modern airport vehicles use lithium batteries with an integrated Battery Management System (BMS).

Charging systems must support communication interfaces to interact with these systems.

Typical functions include:

  • Automatic charging profile selection.
  • Voltage and temperature monitoring.
  • Direct communication with the battery BMS.
  • Integration with battery identification systems.

Charging platforms used as lithium GSE chargers often integrate CANBUS communication to ensure precise interaction with the battery management electronics.

Multi-vehicle infrastructure

Airport fleets frequently require the simultaneous charging of several vehicles within the same electrical infrastructure.

Installations implement coordinated GSE fleet charging strategies including:

  • Load balancing across multiple chargers.
  • Programmable power limiting.
  • Peak shaving to reduce energy absorption spikes.
  • Charging priority management for mission-critical vehicles.

These can be implemented as centralized GSE charging stations or as distributed electric tug charging station points across apron areas.

Airports are increasingly adopting high-efficiency GSE charging solutions to reduce operational costs related to energy consumption.

Typical battery platforms in electric GSE

The battery configuration depends on the size and operational role of the equipment.

GROUP 1

Light airside vehicles

Examples:

  • Small service vehicles.
  • Light baggage tractors.

Typical platform:

48V
QuestThese machines often utilize opportunity charging cycles.e macchine utilizzano spesso cicli di ricarica opportunistica.

GROUP 2

Medium-power airport equipment

Examples:

  • Baggage tractors.
  • Electric tugs.
  • Belt loaders.
  • Cargo handlers.

Typical platforms:

48V
80V

These vehicles use tug chargers or tugger battery chargers depending on fleet configuration.

GROUP 3

Heavy-duty GSE

Examples:

  • Aircraft pushback tractors.
  • Heavy tow tractors.
  • High-power ground support units.

Typical platforms:

80V
96V
These require higher charging power due to large capacity batteries and intensive duty cycles.

Airport GSE charging technologies

Airport charging infrastructures generally utilize industrial DC charging systems designed for traction batteries.

  • High-Frequency (HF) Chargers.
    Widely used in modern fleets for superior efficiency and precise current regulation.
  • Industrial Fast Chargers.
    In high-power installations, fast electric tug chargers allow for rapid energy recovery between turnarounds.
  • Conventional Industrial Chargers.
    Still used for specific lead-acid fleets with overnight charging cycles.

Airport GSE charging architectures

Centralized charging areas

Vehicles connect to chargers installed in dedicated workshops or maintenance areas.

Advantages:

  • Simplified electrical integration.
  • Easier maintenance.
  • Centralized energy management.

Distributed apron charging

Charging stations are installed near operational handling areas.

Components:

  • Shared GSE chargers.
  • Dedicated electric tug charging stations.
  • High-speed towing vehicle chargers.

This configuration reduces vehicle downtime and improves overall operational efficiency.

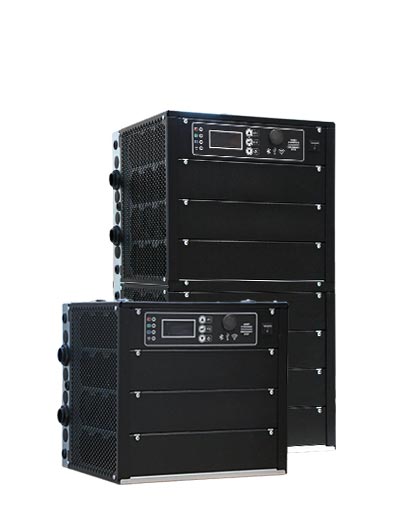

GEBAT products for airport GSE applications

Technical FAQ

How is a charging infrastructure sized for an airport GSE fleet?
Sizing depends on fleet composition, battery voltages, duty cycles, and the available turnaround windows between aircraft operations.
Why is opportunity charging common in GSE fleets?
Airport vehicles work continuously during peak hours. GSE opportunity charging allows energy recovery during short breaks, reducing the need for large, dedicated battery rooms.
Where are GSE charging stations typically installed?
Commonly in maintenance workshops, apron service areas, or operational zones near baggage handling systems.
How can grid overload be prevented during simultaneous charging?
Through smart energy management systems such as load balancing, power limiting, and peak shaving.
What environmental conditions must GSE chargers withstand?
Airside installations are exposed to rain, extreme temperatures, and dust. Therefore, GSE chargers must be designed with weatherproof enclosures for outdoor use.
